About

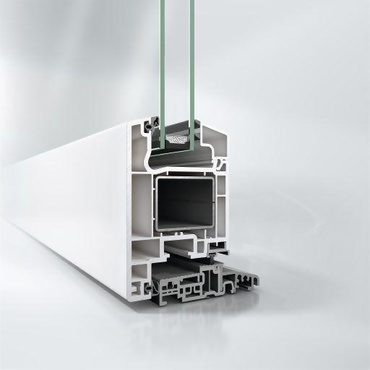

- 5-chamber frame profile and 4-chamber wing profile with excellent thermal insulation properties
- Construction depth 70 mm
- Optional double/triple glazing or different types of door panels
- The inner circumferential seal, together with the outer seal, provide protection against noise and weathering
- Colour finish in any lamination
Properties
Great thermal insulation
5-chamber frame profile and 4-chamber wing profile provide excellent thermal insulation properties
Optional glazing
Optional double/triple glazing or different types of door panels
Double seals
The inner circumferential seal, together with the outer seal, provide protection against noise and weathering
Custom color finish
Colour finish in any lamination
Technical Specification
| Profile chambers | 5 |
| Construction depth | 70mm / 2" 3/4 |
| Glasses | 2 sklo / DGU |
| Glazing type | 4-16-4 |
| U (window) | 0.27 (U.S/I-P) |
| U (glass) | 0.18 (U.S/I-P) |
| Min width | 15" 3/4 - wing |
| Min height | 78" 3/4 |
| Max width | 43" 5/16 - wing |
| Max height | 96" 7/8 |
| Sound mitigation (Rw) based on glazing and size |
