About

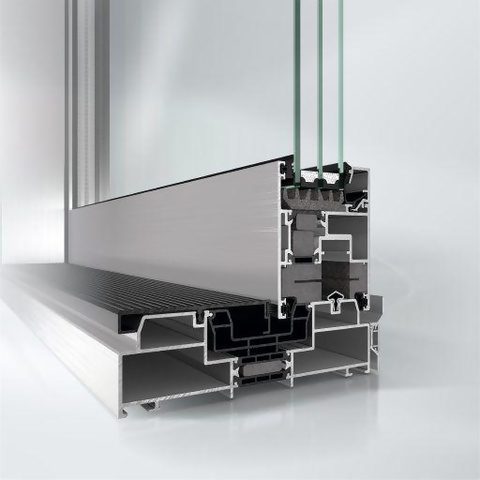

Versatility is our strength: The Gemi GEMI 70.HI is a modular profile system with a modern design which meets the highest structural requirements. It boasts an array of profile view widths, is compatible with other heroal systems and offers a virtually limitless selection of surfaces. The Gemi GEMI 70.HI also offers multi-track opening types and barrier-free systems.
Special casement section geometries ensure that all requirements and specifications relating to heat insulation are met for all casement sizes and weights. The heroal sealing technology, with three levels and sealed corners for sealing casements and central joints, enables optimum air permeability and tightness against driving rain.
Product properties:
- Exceptional optical interconnection of the interior with your garden or terrace
- 3-chamber system with excellent thermal insulation properties
- Construction depth 178 mm
- Barrier-free sill
- Ideal solution for filling larger construction openings
- Optional double or triple glazing up to 56 mm
- Excellent interior illumination
- Easy to operate, the door does not take any space during opening
- Saves space required for handling
- Be connected with nature in every season
- Any lamination finish, also available in RAL finish
- Wing height up to 3,000 mm
Properties
Eliminated bimetallic effect
Prevents the sliding door from getting damaged
Maximal size of sliding wing 118 x 118in
Innovative middle coupler
Ensures better resistance towards wind and rain
Maximal carrying capacity of the wing 900lbs
Enables big glassing of modern architecture
Optional barrierless design
Enables you to walk from outside to inside without tripping over
Technical Specification
| Profile chambers | 3 |
| Construction depth | 178mm / 7" |
| Glasses | 3 / TGU |
| Glazing type | 4-16-4-16-4 |
| U (window) | 0.22 (U.S/I-P) |
| U (glass) | 0.1 (U.S/I-P) |
| Min width | 78" 3/4 type A |
| Min height | 78" 3/4 |
| Max width | 236" 1/4 - type A |
| Max height | 118" 1/8 |
| Sound mitigation (Rw) based on glazing and size |
