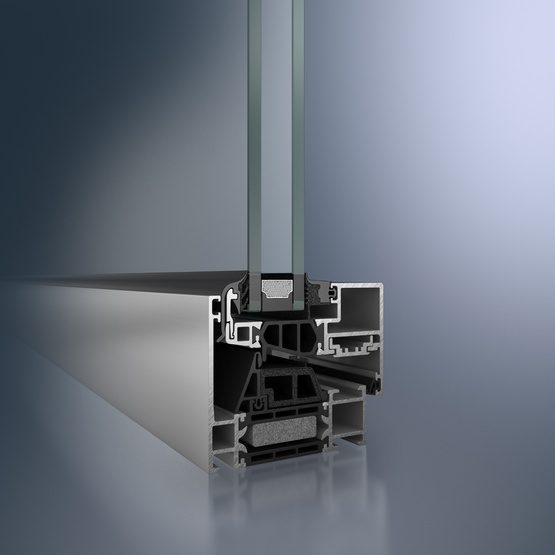

AWS 75 BS.HI Aluminium Window

The innovative system solution for any area of application

About AWS 75 BS.HI

Gemi W 77 is the innovative and sustainable aluminium window system solution from Gemi. The system provides the highest possible quality alongside maximum energy and cost efficiency – both during manufacture and throughout the lifetime of a product. Thanks to its numerous innovative and design advantages, it impresses in every area of application.

Perfection lies in the detail: Thanks to the newly developed and enhanced corner angle, connector and internal seal technologies from Gemi, the Gemi W 77 aluminium coupled window system enables huge savings to be made on time and materials during processing. The use of Gemi system fittings guarantees additional system reliability and warranty.

Gemi fitting systems for windows provide the greatest possible scope for design. Whether supported or concealed, the right fitting can be found for every type of architecture. Modern handle design and durability are typical of heroal products.
» High degree of pre-assembly and simple clampable fitting parts reduce production times by as much as 40%
» Guaranteed system reliability when using Gemi system fittings

Request Product Catalog

Gemi T-connector technology

Gemi development technology

Gemi fitting technology

Gemi internal seal technology

AWS 75 BS.HI Properties

Hidden ironwork and position- adjustable ventilation

Optimal sealing with regards to temperature insulation

Air chambers in the insulator

Improve the temperature resistance

100% foam filling of the profiles

Advantageous for the temperature and insulation

Surface treatment HWR

Ensures long-lasting colour duration of the profiles

Technical Specification

Profile chambers 4
Construction depth 77mm / 3" 1/16
Glasses 3 / TGU
Glazing type 4-16-4-16-4
U (window) 0.13(U.S/I-P)
U (glass) 0.13(U.S/I-P)
Min width 20" 1/2
Min height 18" 1/2
Max width 59" 13/16
Max height 96" 7/8
Sound mitigation (Rw) based on glazing and size 33-45 dB

Compare Window Download Product Catalog

I Want to Know More

    Features

    Sound Mitigation

    Prevention effect, advocate dialogue rural development lifting people up community civil society. Catalyst, grantees leverage.

    Superior Thermal Insulation

    Prevention effect, advocate dialogue rural development lifting people up community civil society. Catalyst, grantees leverage.

    Design and Style

    Prevention effect, advocate dialogue rural development lifting people up community civil society. Catalyst, grantees leverage.

    Accessories

    Prevention effect, advocate dialogue rural development lifting people up community civil society. Catalyst, grantees leverage.
