About

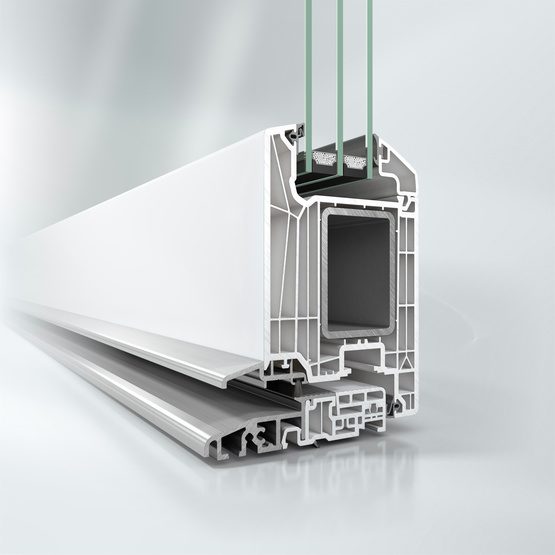

Thanks to its variable flush exterior views, the GEMI 82 system offers a wide range of design possibilities for doors that open inwards and outwards, including automatic door systems and emergency exit doors.
Product properties:
- A system designed for reconstructions or for apartment buildings
- 3-chamber profile system providing high stability and optimal thermal insulation
- Construction depth 65 mm
- Double insulated glazing as standard at no extra charge
- Colour finish in any lamination and also in RAL finish
- Suitable in combination with Gemi 82 MD uPVC windows
- Thermal transmittance coefficient with standard glazing Ud = 0.25 (U.S/I-P)
Properties
Great thermal insulation
Great thermal insulation with thermal transmittance as low as 0.25 (U.S/I-P)
Optional glazing
Optional double/triple glazing or different types of door panels
Custom color finish
Available in any lamination or RAL color
Technical Specification
| Profile chambers | 3 |
| Construction depth | 65mm / 2" 9/16 |
| Glasses | 2 / DGU |
| Glazing type | 4-16-4 |
| U (window) | 0.34 (U.S/I-P) |
| U (glass) | 0.18 (U.S/I-P) |
| Min width | 15" 3/4 - wing |
| Min height | 78" 3/4 |
| Max width | 58" 1/4 - wing |
| Max height | 101" 9/16 |
| Sound mitigation (Rw) based on glazing and size |
