Alu Inside uPVC Window

A new item in the Gemi product line – a window made of the new 6-chamber profile with angular lines, new triple glazing featuring warm spacer SGG Swisspacer V and 85 mm construction depth, suitable for low-energy and passive houses.

About Alu Inside

The profile system is specially designed for triple glazing of up to 61 mm thickness. With top thermal insulation properties, it helps you save up to 35% in terms of thermal insulation compared to 5-chamber uPVC windows.

Thanks to revolutionary technology, in the wings of new uPVC windows Gemi uses glass firmly glued to the wing. Gemi’s uPVC windows are thus lighter and safer, while the profile is prevented from gradually pulling away from the glazing. This enhances window resistance to burglary because the glazing is firmly connected around the entire perimeter (the glass pane cannot be pushed away from the wing, even in the case of levering out the glazing moulding).

Production automation guarantess higher manufacturing quality and if the glass breaks, it is possible to replace it without damaging the seal.

Request Product Catalog

About Alu Properties

Top thermal insulation with triple glazing

Thermal transmittance coeficient of the whole window U = 0.14 (U.S/I-P) with 4-16-4-16-4 glazing.

Warm central spacer

SGG Swisspacer U

Central seal

The central seal greatly enhances the thermal insulation properties of the window, protecting the fittings against weathering and providing high water resistance.

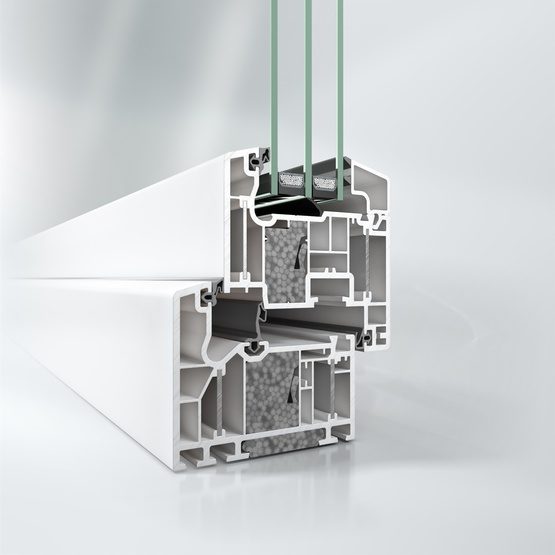

Base 6-chamber profile with seal

For anchoring the exterior and interior sill (a critical point for the formation of thermal bridges with profiles featuring fewer chambers)

Possible ALU clip finish

The profile system provides protection from the exterior side by hard and durable aluminium cover with custom finish – anodised aluminium, laminate finish, RAL coating

Technical Specification

Profile chambers 6
Construction depth 85mm / 3" 3/8
Glasses 3 / TGU
Glazing type 4-16-4-16-4
U (window) 0.13(U.S/I-P)
U (glass) 0.1( U.S/I-P)
Min width 15" 3/4
Min height 15" 3/4
Max width 55" 1/8
Max height 94" 1/2
Sound mitigation (Rw) based on glazing and size 34-47 dB

Compare Window Download Product Catalog

I Want to Know More

    Features

    Sound Mitigation

    Prevention effect, advocate dialogue rural development lifting people up community civil society. Catalyst, grantees leverage.

    Superior Thermal Insulation

    Prevention effect, advocate dialogue rural development lifting people up community civil society. Catalyst, grantees leverage.

    Design and Style

    Prevention effect, advocate dialogue rural development lifting people up community civil society. Catalyst, grantees leverage.

    Accessories

    Prevention effect, advocate dialogue rural development lifting people up community civil society. Catalyst, grantees leverage.
